Speed polars adapted to the original glider speed polars




Following gliders are adapted or not adapted at this time:

1.) Original speed polars available:

ASH25, ASK13, ASK21, ASW15B, ASW17,Blanik L-13, Bocian, Discus CS, Discus 2b, Duo Discus, DG-100, DG-200-15m, DG-200-17m, IS-29D2, Ka 6E, K 7, K 8, L-Spatz-55, LS-4, LS-7, LS8-18, LO-100, SG-38, Standard Libelle,

2.) Original speed polars not available, values estimated or adapted to similiar gliders:

Doppelraab, Ka 4, Mue13E, Bergfalke III




Program PolarCalc for editing and testing speed polars

Programmbild
This program shows the polar curves some of my gliders, which were adapted to the original polars. Up to 5 polars of different gliders you can put on top of each other and compare. You can also make experiments with different wing loadings, sink rates and polar coefficients from other sources. In addition, an ASCII line is produced for Max Roodveldt's Flightviewer program. Purpose of this file you can read out of the accompanying texts of the FlightViewer program. therefore, please, don't ask me!

You need the Visual Basic 5 Runtime Libraries for using this program (not required in Windows Vista and WIN7) !
Version :  17.03.2010
Download PolarCalc V 1.02  (35 KB)

Some original speed polars of my gliders

ASH 25

Polare ASH25
2011/03 : FS model adapted

ASK 13

Polare K13
2005/03/28 : FS model adapted

ASK 21

Polare K21
2011/06/13 : FS model adapted

ASW 15 B

Polare DG-100
2011/06/10 : FS model adapted

ASW 17

Polare ASW17
2011/12 : FS model adapted

ASW 20 BL

Polare ASW20 BL
2011/12/08 : FS model adapted

Blanik L-13

Polare Blanik L-13
2005/04/02 : FS model adapted

Bocian

Polare Bocian
2005/03/29 : FS model adapted

Discus CS

Polare Discus CS
2005/03/28 : FS model adapted

Duo Discus

Polare Duo
2005/03/17 : FS model adapted

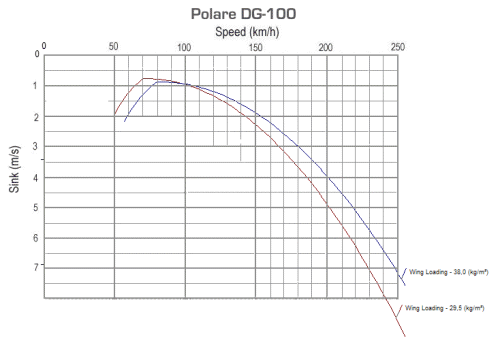

DG-100

Polare DG-100
2005/04/10 : FS model adapted

DG-200-15m

Polare DG-200
2009/07 : FS model adapted

DG-200-17m

Polare DG-202-17
2009/07 : FS model adapted

IS-29D2

Polare IS-29D2
2011/12 : FS model adapted

Ka6 E

Polare Ka 6E
2005/03/28 : FS model adapted

K 7

Polare Ka 7
2005/04/02 : FS model adapted

K 8

Polare Ka 8
2005/03/28 : FS model adapted

L-Spatz-55

Polare Libelle
2007/01/25 : FS model adapted

LO-100

Polare SG-38
2011/11 : FS model adapted

LS-4

Polare LS-4
2005/03/28 : FS model adapted

LS-7

Polare LS-7
2005/04/13 : FS model adapted

LS8-18

Polare LS-8-18
2009/04 : FS model adapted

SG-38

Polare SG-38
2009/07 : FS model adapted

Standard Libelle

Polare Libelle
2005/03/29 : FS model adapted
